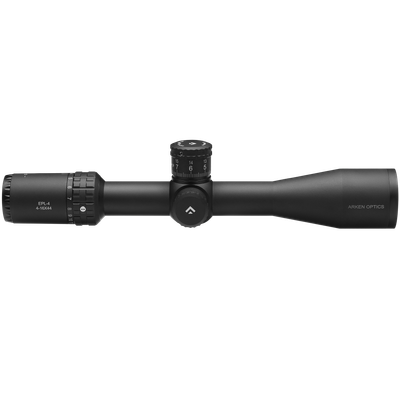

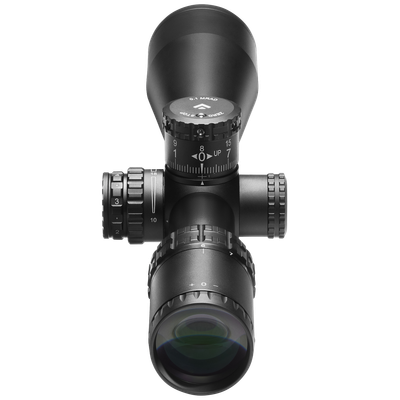

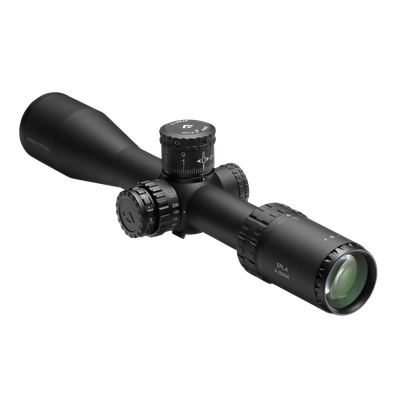

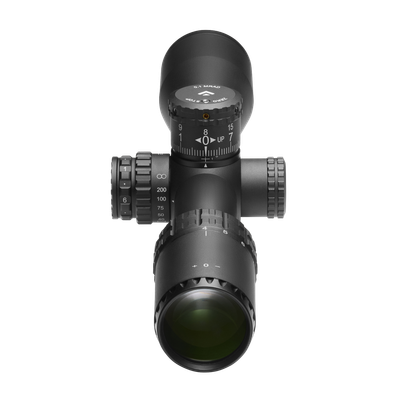

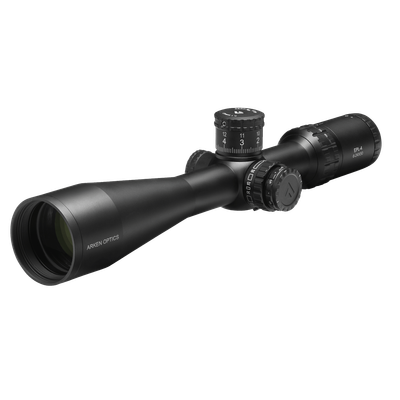

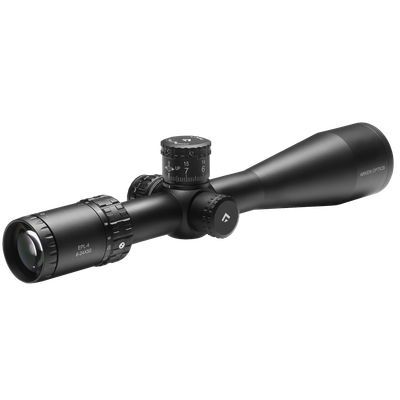

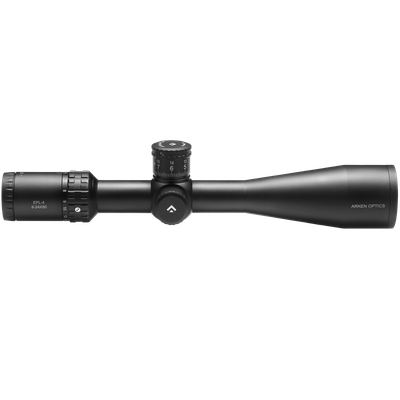

Product Details EPL 4-16X44 & 6-24X50

The EPL or "EP Light" is our Light Weight Hunter version of the EP (Extreme Precision) series. It is built on a streamlined 30mm main tube to reduce overall weight with our toolless, easy-to-operate capped windage turret that lets you set and forget. Our Japanese ELD (Extraordinary Low Dispersion) and the VHR (Variable Hunter Reticle) or the VPR (Variable Precision Reticle) combine to provide astonishing optical performance making this a pleasure for users of all skill levels and disciplines.

Magnification: 4-16x or 6-24x

Objective Diameter: 44mm or 50 mm

Eye Relief: 3.6 or 3.5 inches

Field of View: 30-7.5 ft @100 Yards or 18.55-4.65 ft. @100 Yards

Tube Size: 30 mm

Turret Adjustment: 1/10 or 1/4 MOA

Reticle Position: First Focal Plane

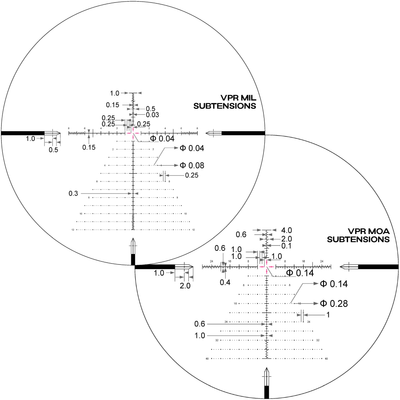

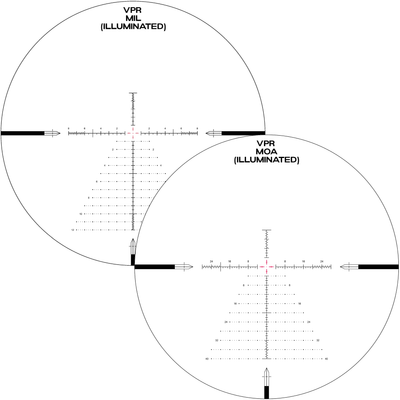

Reticle Details: VHR or VPR*

Zero Stop: AZS Zero Stop System

Zero Reset: Yes

Elevation Adj. Range: 25 MRAD - 86 MOA or 20 MRAD - 68 MOA

Windage Adj. Range: 12 MRAD - 41 MOA

Elevation Adjustment Per Revolution: 8 MRAD - 20 MOA

Windage Adjustment Per Revolution: 6 MRAD - 15 MOA

Parallax: Side Parallax Adjustments, 10Yds-Infinity

Illuminated Reticle: Red

Turret Rotation: Counter Clockwise (CCW)

Length: 13.2 inches or 13.8 inches

Weight: 23.7 oz

Battery (Not Included): CR2032

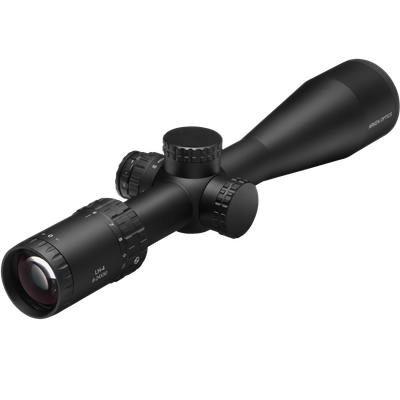

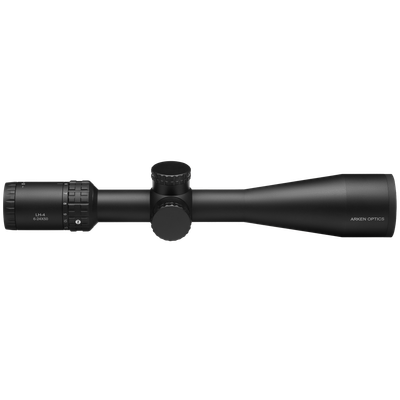

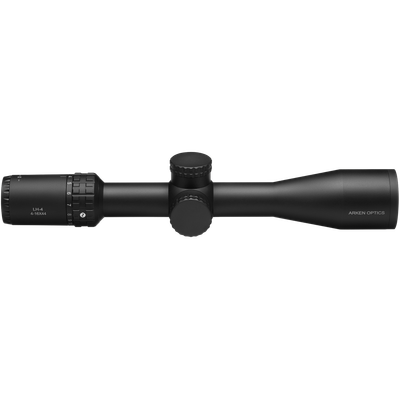

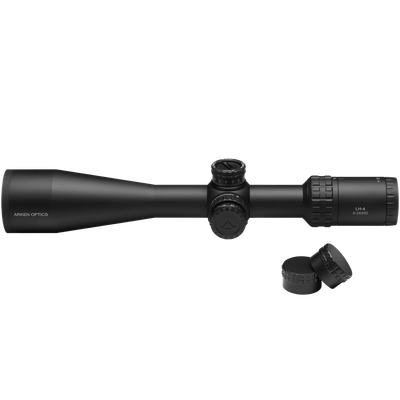

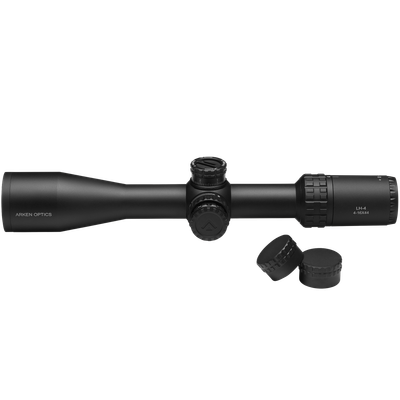

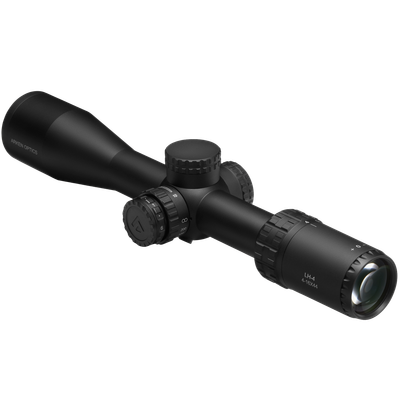

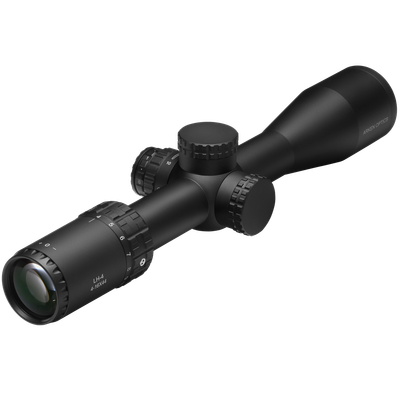

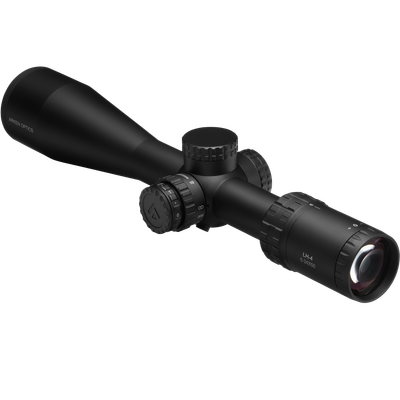

Product Details LH4-16X44 & 6-24X50

The LH-4 is an illuminated lightweight hunting optic with fully capped turret assemblies. This optic meets the ARKEN standard for precision and durability to perform in the harshest environments around the world.

Specifications:

• Magnification: 4x-16x or 6-24x
• Objective FOV Diameter: 44mm or 50mm
• Eye Relief: 3.6 inches or 3.5 inches
• Field of View: 30-7.5 ft @ 100 Yards or 18.55-4.65 ft @ 100 Yards
• Tube Size: 30mm
• Turret Adjustment: 0.1 MRAD / 0.25 MOA
• Reticle Position: First Focal Plane (FFP)

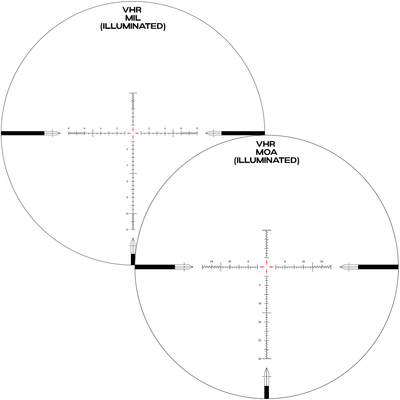

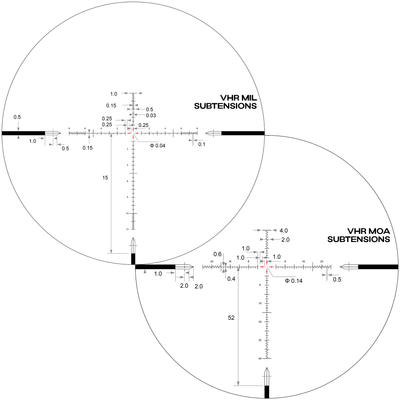

• Reticle Details: VHR MIL/VHR MOA/VPR MIL/VPR MOA
• Max Elevation Adjustment: 17 MRAD / 58 MOA or 18 MRAD / 60 MOA
• Max Windage Adjustment: 14 MRAD / 50 MOA
• Elevation Adjustment Per 1x Revolution: 6 MRAD / 15 MOA
• Windage Adjustment Per 1x Revolution: 6 MRAD / 15 MOA
• Parallax: 10Yards-Infinity
• Illuminated Reticle: Red
• Length: 13.2 inches or 13.8 inches
• Weight: 24.45 oz or 22.58 oz
• Battery (Not Included): CR2032

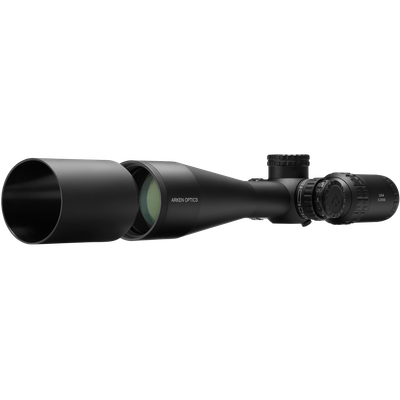

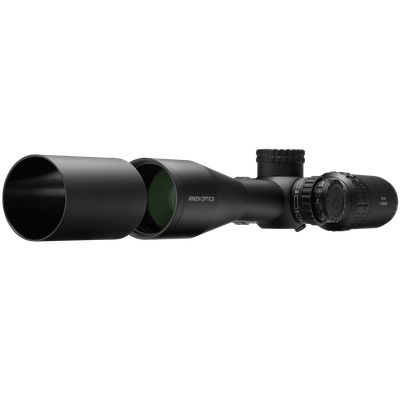

• Sunshade: Yes
